BQ-PULF Duel Channel Ultrasonic Water Flow Meter

BQ-PULF Duel Channel Ultrasonic Water Flow Meter The BQ-PULF series single/double channel ultrasonic water meter adopts ultrasonic flow measurement technology, which has a large range ratio, and solves the problem that the traditional water meter idling and small flow rate are not measured. It is widely used in urban water supply pipelines, household water consumption meter, water resource water monitoring, and also applicable to a variety of industrial sites. Ultrasonic water meters use the IP68 solution of the components in the structure, that is, each component is IP68 protection grade. The instrument chamber ensures long-term operation even when it is flooded. What's the main features of Duel Channel Pipe type Ultrasonic Water Flow Meter? 1) Two-channel measurement (DN15 ~ DN40 for single, DN50 ~ DN300 for two channels) 2) 9 digits show cumulative flow, 4 digits on the same screen show instantaneous flow 3) Starting flow rate less than 0.01m/s and accurate measureme

CODG-3000 Industrial Online (chemical oxygen demand ) COD analyzer

CODG-3000 Industrial Online (chemical oxygen demand ) COD analyzer Email:michael@shboqu.com CODG-3000 type COD automatic industrial online analyze(chemical oxygen demand analyzer)is developed with completely independent intellectual property rights of COD automatic testing instrument, be able to automatically detect COD of any water for a long time that in unattended condition. Features of Online COD meter The unique design makes this products compared to similar products with lower failure rate, lower maintenance, lower reagent consumption and higher cost. Injection components: vacuum suction peristaltic pump, and the pump tube between the reagent there is always an air buffer, to avoid corrosion of the tubing, while making reagent mixing more concise and flexible. Sealed Digestion components: high –temperature high-pressure digestion system, accelerating the reaction process, to overcome the volatile corrosive gas exposure system equipment corrosion. Reagent tube: impo

BQ-ULM Water Liquid Fuel Ultrasonic Level Meter

Ultrasonic Level Meter is microprocessor controlled digital level instrument. Ultrasonic pulses generated by the sensor (transducer) sent in the measurement, the surface acoustic wave after reflection by the liquid or receiving the same ultrasonic receiver transducer, a piezoelectric crystal or a magnetostrictive element into an electrical signal by transmitting and receiving sound waves the time between the sensor to calculate the distance to the measured surface of the liquid. As a result of non-contact measurement, the measured media is almost unlimited, and can be widely used for measuring the height of a variety of liquid and solid materials. Technology Features 1) It can be with GPRS and Wifi. 2) Backup and restore settings parameters 3) Measurement of material level, liquid level, volume, weight, etc. 4) Analog output can be adjusted arbitrarily. 5) It has the functions of digital filtering and echo recognition. 6) Can set artificial interfer

BQA100H 0~100Mpa Liquid Gas Oil Pressure sensor

BQA100H 0~100Mpa Liquid Gas Oil Pressure sensor BQA100H silicon pressure sensor transmitter is designed for use in applications which deal with corrosive pressure media and require high accuracy. The pressure diaphragm of transmitter is made from silicon material, while its wetted parts are made from 316L stainless steel which possesses a higher degree of resistance against chemical corrosion. The output signals of BQA100H pressure transmitters are configured to meet the need of different controllers used in industrial automation processes, including 4~20mA, 0~5V. With BQA100H one can obtain 0.25 % fs accuracy in measurement with long-term stability. The zero thermal drift is less than 0.04 %fso/°C, while the sensitivity thermal drift is 0.02 %fso/°C over the whole operating temperature range. Email:michael@shboqu.com 2. Specification: measuring media Liquid/gas/oil measuring range MPa 0-100 overload pressure %FS 150 burst pressure %FS 250 power

DOG-209FYA 0~20ppm Online Optical Water Dissolved Oxygen Transmitter with 4-20mA

DOG-209FYA 0~20ppm Online Optical Water Dissolved Oxygen Transmitter with 4-20mA Features of Online Optical Dissolved Oxygen Transmitter DOG-209FYA type oxygen sensor improved from the previously dissolved oxygen sensor, change diaphragm into a grit mesh metal membrane, with high stability and stress resistant, can be used in a more harsh environment, free maintenance, suitable for urban sewage treatment, industrial wastewater treatment, aquaculture and environmental monitoring and other fields of continuous measurement of dissolved oxygen. Email: michael@shboqu.com Technical Indexes of  Online Optical Dissolved Oxygen Transmitter 1. Description: Optical dissolved oxygen sensor CPVC(or PVC)/ Stainless Steel 316 body with replaceable membrane cap module. M9 male connector, IP-68 2. Range: DO: 0-20mg/L Working temperature: -5 to 50℃ Sat. %: 0-200% 3. Accuracy: DO: ±0.1mg/L Temperature: ±0.2℃ Sat.%: ±1.0% 4. Response Time: 30 second to 90% (T-90), 60 seconds to 100% 5

O3-2059 Industrial O3 Dissolved Ozone Analyzer

O3-2059 Industrial O3 Dissolved Ozone Analyzer O3-2059 is a total new industrial dissolved ozone analyzer, with high intelligence, sensitivity. It can measure dissolved ozone and temperature simultaneously. It is widely used in such industries as thermal power plant, running water, pharmaceutical, drinking water, water purification, industrial pure water, swimming pool disinfection residual chlorine continuous monitoring. Email:michael@shboqu.com what's the features of O3 Dissolved Ozone Analyzer? ①Measurement principle: constant pressure ②Large LCD screen ③Several parameters display at the same time: Dissolved ozone values,Temperature value,current and has range transfinite tip. ④Has function of backing to factory setting. ⑤Manual/automatic temperature compensation ⑥Isolation 4-20mA output Technical Indexes 1. Measuring range: Dissolved ozone values:0-20mg/L or 0-2 mg/L; Temp:0-60℃ 2.Resolution:0.01mg/L,0.1℃ 3.Precision:better than ±1% or±0.01mg/L,±0.5℃ 4. Manua

operation of DDB-2011 Conductivity Measurement Transmitter

DDB-2011  Conductivity Transmitter 1.Summary DDB-2011 conductivity transmitter is measured by single chip digital circuit and Temperature compensation.Widely used in water treatment equipment such as reverse osmosis, seawater desalination, circulating water, etc.It includes 4-20mA isolated analog output.This Transmitter can realize the data transmission of measurement data with PLC or recorder. 2.Features a.With automatic range switching ; b. With automatic adjustment zero; c. With conductivity value, temperature value, corresponding output current value display; d.User can set value of 4mA  and 20mA  based on any condition. e.Many different electrodes for different conditons. 3.Technical parameters 1)range: 0~2000µS/cm; ( 0~300.0mS/cm ) ,transmitter will auto switch in range of 0 ~ 20.00µS/cm , 0~200.0µS/cm , 0~2000µS/cm; 2) Temperature compensation :auto t emperature compensation  in 0~100℃,  compensation base is 25C,Compensation coefficient can be set by self. 3)Display:conductivit

BQ-TOC-800 Online Total Organic Carbon TOC Analyzer

BQ-TOC-800 Online Total Organic Carbon TOC Analyzer The Total Organic Carbon (TOC) On-Line Analyzer consists of a wet oxidation loop and a non-   dispersive infrared (NDIR) carbon dioxide gas detection system. Simple structure, convenient connection, easy maintenance, easy to upgrade and replace; low operating cost, suitable for online environmental monitoring, online water quality analysis, and environmental protection, quality supervision departments or teachers and students at all levels; wet oxidation non-dispersive infrared analysis with high sensitivity Wide range of applications, suitable for online analysis of pollution sources, surface water, drinking water, groundwater and process water  Features 1. Free-maintenance design to ensure that the pretreatment device maintenance period exceeds half a year. 2. The chemical digestion time can be adjusted. 3. Fully imported devices ensure less 5% reproducibility, 4. Fully automatic operation, no need for personnel to be on duty,

Shanghai BOQU Instrument Company

BOQU is the biggest factory for Water Quality Analyzer in Shanghai and we build the first High Temp Labotary in China.and we produce more 100 000 sensors every years.    BOQU mainly products includes pH meter, Conductvity meter, Dissovled oxygen meter, Turbidity meter,Residual Chlorine Meter,Ion meter,COD/BOD analyzer,Heavy metals etc. Flow meters,Level meters,pressure sensors etc.   If need any help or inquiry pls contact: michael@shboqu.com

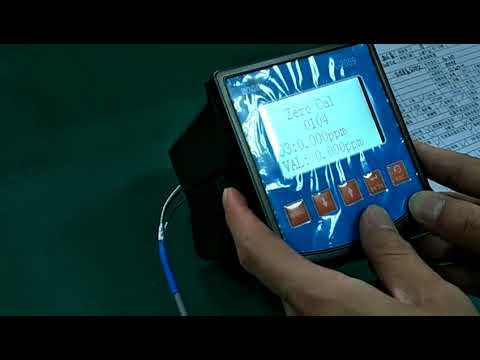

calibration of Dissolved Ozone O3 meter
